How to Add Image Gallery Module Using File Manager For Dropbox?

The Image Gallery module displays selected Dropbox images in a responsive gallery. You can configure sources, filters, layout, thumbnails, overlay options, and permissions to fit your needs.

Quick Start

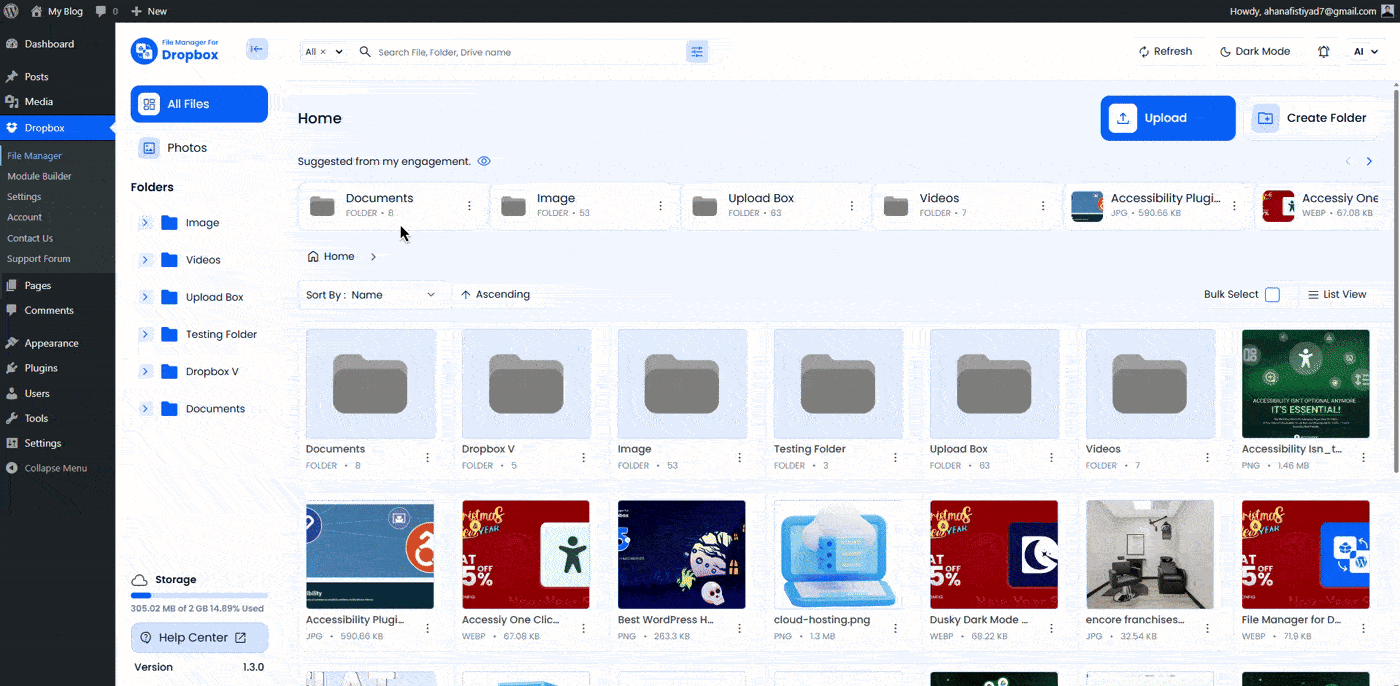

1. Go to Dropbox → Module Builder.
2. From Modules, select Image Gallery and click Next.
3. In Source, choose folders or files to display, then click Save Changes → Next.
4. Configure Filter, then open Advanced to adjust layout, thumbnails, and overlay options.
5. Set Permissions and click Finish.

Step 1 Modules

• Image Gallery — Displays Dropbox images in Justified, Grid, or Masonry layouts with optional captions and overlays.

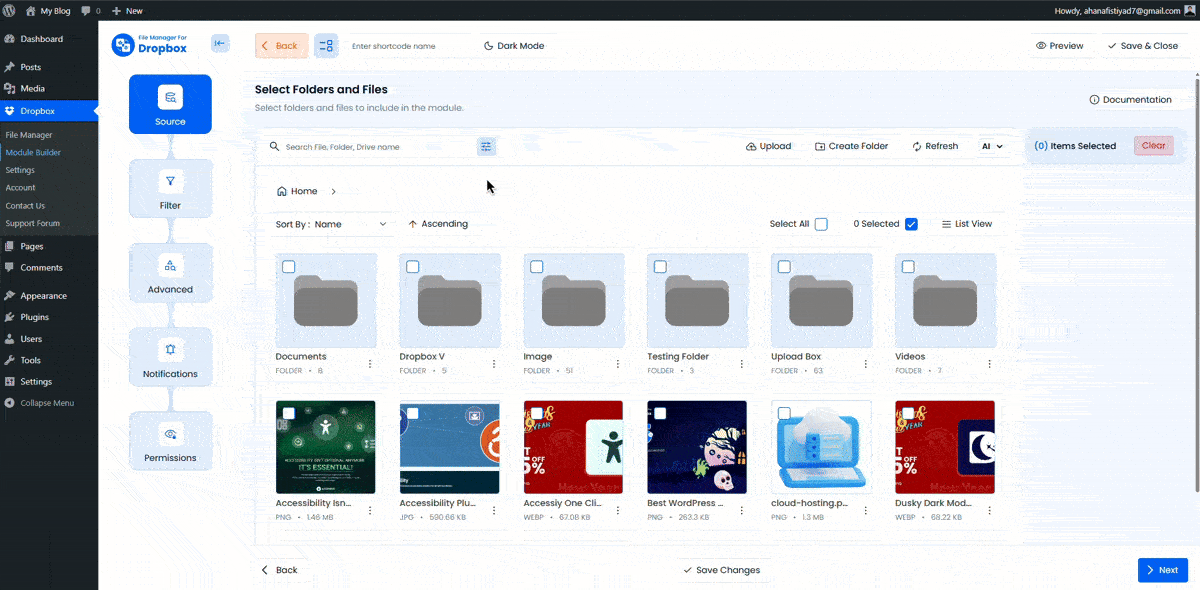

Step 2 Source

Choose where your images come from.

• Pick Folders/Files: Click to select items. Selected items appear in the right sidebar.
• Toolbar: Upload, Create Folder, Refresh, Grid/List view toggle.
• Sort & Order: Sort by Name, Size, Created At, or Updated At with Ascending or Descending order.

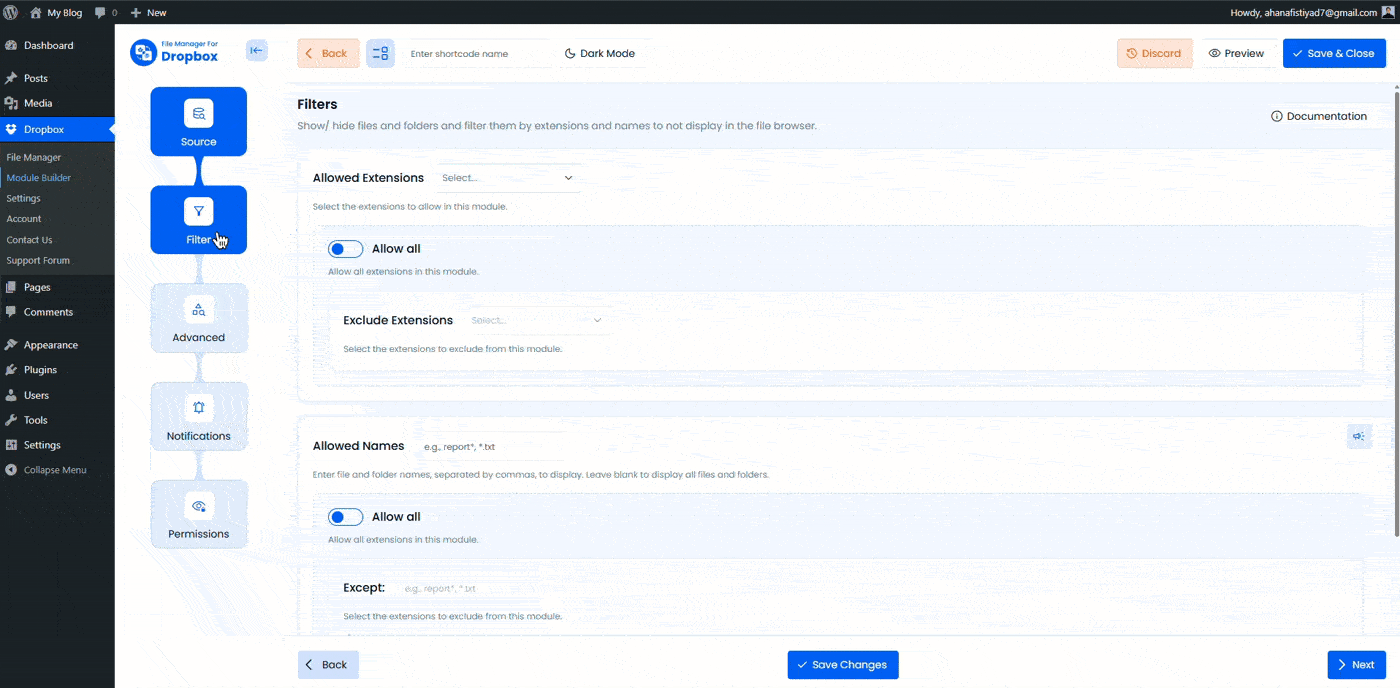

Step 3 Filter

Control which images appear in the gallery.

• Allowed Extensions: Include image formats such as jpg, jpeg, png, webp, gif.
• Exclude Extensions: Hide unwanted file formats.
• Allowed Names: Comma-separated list with wildcard support, like banner*, *.webp, img?, product_*.
• Apply To: Apply name filters to Files or Folders.

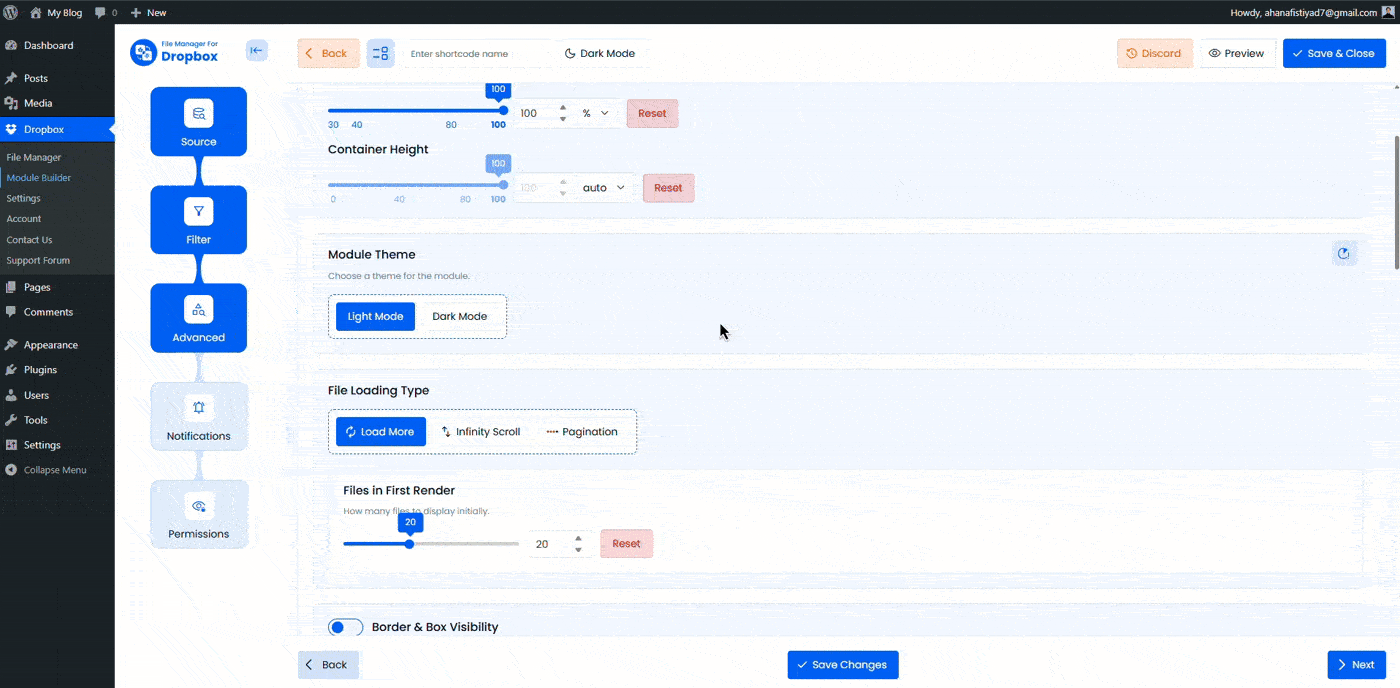

Step 4 Advanced

Module Settings

• Container Size: Set Width and Height (for example 100%, 720px, 70vh) or leave empty for default.
• Module Theme: Choose Light or Dark mode.

File Loading

• Load Type: Load More, Infinite Scroll, or Pagination.
• Files in First Render: Number of images loaded initially.

Gallery Layout

• Layout: Justified, Grid, or Masonry.
• Row Height (Justified): Set the target row height in pixels.

Thumbnail

• Spacing: Space between thumbnails in pixels.
• Quality: Original, Medium, or Thumbnail.
• View Shape: Rounded or Square.

Overlay

• Show Overlay: Enable or disable image overlay.
• Display Type: Always visible or show on hover.
• Show Title / Description / Size: Choose which details appear on the overlay.

Automatic Fetch

• Enable Automatic File Fetching: Automatically detect new files added to Dropbox.
• Fetch Interval: Time interval in seconds (example 60).

Sorting

• Sort By: Name, Size, Created At, Updated At.
• Order: Ascending or Descending.

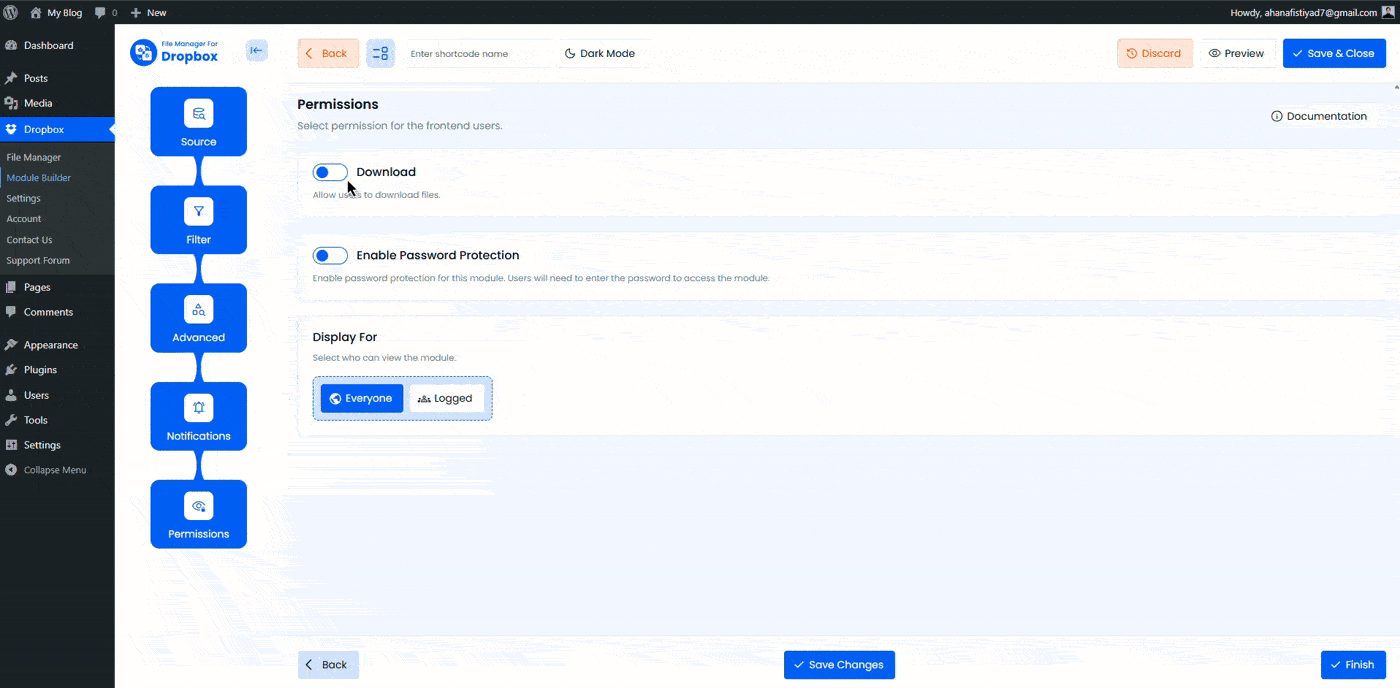

Step 5 Permissions & Access Controls

A. Preview Controls

• Preview: Allow or block image preview on the frontend.
• Inline Preview: Open images in a lightbox popup.
• Allow Pop-out: Open images in Dropbox’s native viewer.
• Show Preview Thumbnails: Show or hide thumbnails in the preview modal.

B. Filter Users & Roles

• Audience: Everyone or Logged In users only.
• User Access Modes:
  • Role-Based: Allow access by user roles.
  • User-Based: Allow access to selected users.
• Access Denied Message: Custom message shown when access is restricted.

C. Password Protection

• Enable Password: Protect the gallery with a password.
• Password Generator: Generate a strong random password.

D. Display For

Control who can see the gallery on the frontend: Everyone or Logged In users only.

Step 6 Usage

Embed the Image Gallery using the generated shortcode

[*integrate-dropbox id="123"]

Best Practices

• Use Role-Based access for easier permission management.
• Select Medium or Thumbnail quality for better performance.
• For large galleries, reduce Files in First Render and enable Infinite Scroll.
• Use Justified layout for uniform rows or Masonry for mixed image sizes.

Troubleshooting

• No images showing: Check Source selection and Filter settings.
• Layout looks uneven: Adjust Row Height or switch layout type.
• Gallery loads slowly: Use smaller image quality and reduce the initial load count.
• Users cannot access the gallery: Review Display For and user permission settings.
